UNILIN Insulation Products CAVITYTHERM CT/PIR

CavityTherm

CT/PIR

CavityTherm

CT/PIR

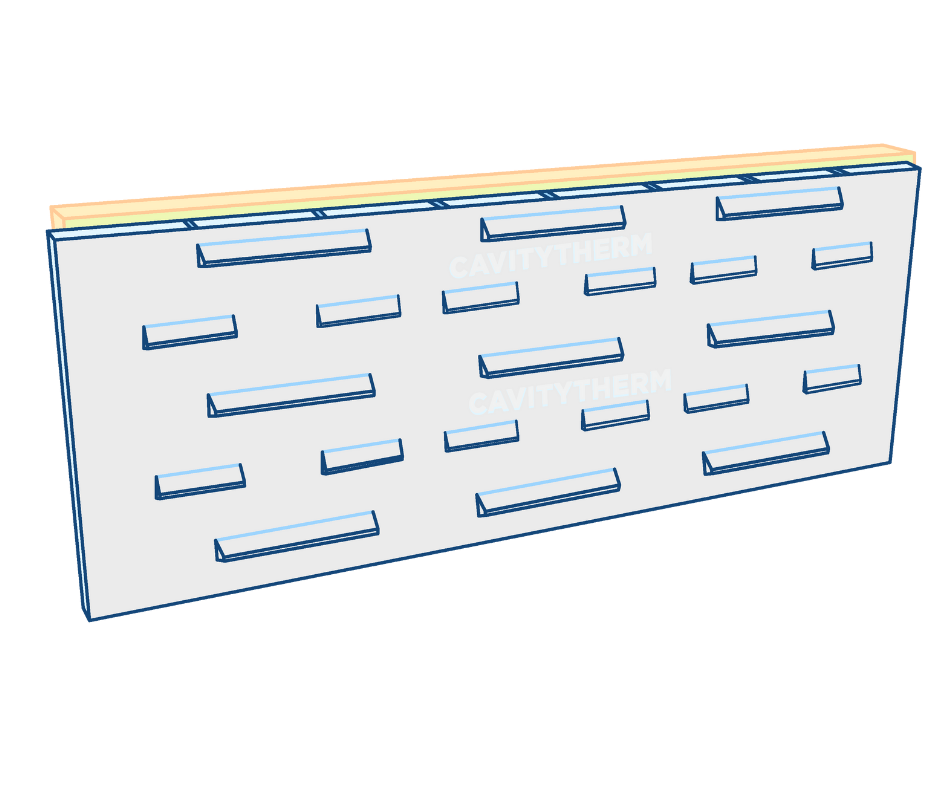

CavityTherm is a built-in insulation for traditional Full Fill Cavity Walls that achieves passive level U-Values as low as 0.13 W/m2K with excellent thermal bridging detailing in cavities less than 150mm wide.

Enquire about this product

Attributes

Product Details
Product name	CT/PIR
Material code	Please refer to packing list
Thickness	100mm, 110mm, 125mm, 150mm
Application	Wall
Inner facing	Composite foil facings
Outer facing	HIP facer
Thermal Conductivity	0.021 (W/Mk)
Compressive Strength	CS (10\Y) 100
Unit of measurement	mm
Size/Dimensions	1200 x 450mm
Reaction to fire	Euroclass F
Installation guidelines	Please refer to marketing materials
EPD	An Environmental Product Declaration (EPD), certified by IGBC is available for this product. Please contact technical support for further details.

Typical U-Values

Table 1
CavityTherm (Inner block 100)

Build-up

Plaster
100mm Inner Leaf Blockwork
CT/PIR
Unventilated Cavity
100mm Outer Leaf Blockwork
19mm Sand/Cement Render

Block Lambda	100mm	110mm	125mm	150mm
1.13	0.20	0.18	0.16	0.13

Key Points

Engineered HIPs facer provides wind driven rain protection

Moisture redirected to outer surface

Prepositioned slots for sloping wall ties – no creep

Fully engineered jointing

Thermal Bridging Values

Full range of accessory pieces build continuous system
