UNILIN Insulation Products ECO 360 Cavity Wall 360

ECO 360

Cavity Wall 360

Partial fill wall insulation

Cavity Wall 360

Partial Fill Cavity Wall

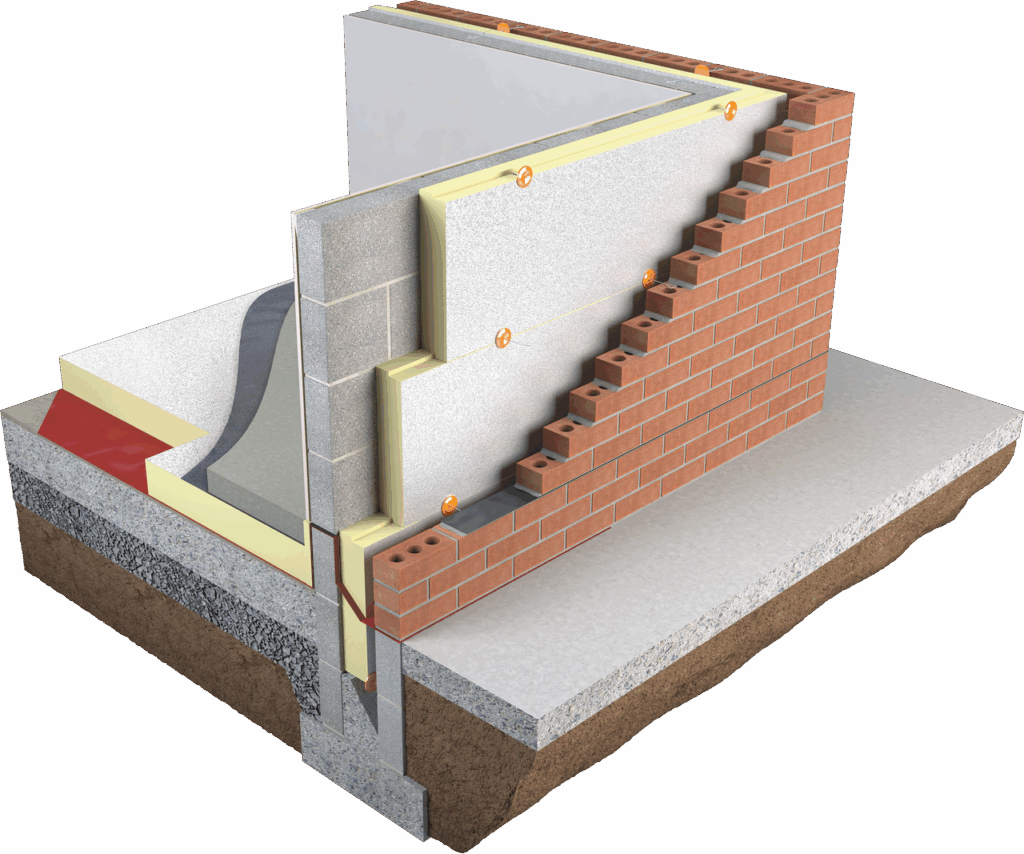

Cavity Wall 360 is a bio-enhanced partial fill wall insulation system. The system incorporates robust facings, engineered jointing details, pre-formed corners and has a certified Lambda of 0.020 W/mK.

Cavity Wall 360 is an environmentally sound choice for Passive and low energy builds. It can achieve a Passive U-Value of 0.15 W/m2K in a traditional cavity wall. When building with Cavity Wall 360 a residual cavity is maintained, offering excellent protection against wind-driven rain

Enquire about this product

Attributes

Product Details
Product name	Cavity Wall 360
Material code	Please refer to packing list
Type	Bio enhanced high performance PIR Insulation
Application	Wall
Thickness	100mm, 110mm
Inner facing	textured foil facings
Outer facing	Foil facing
Unit of measurement	mm
Thermal conductivity	0.020 (W/mK)
Compressive strength	CS (10\Y) 120
Size/Dimensions	1200 x 450mm
Reaction to fire	Euroclass F
Installation guidelines	Please refer to marketing materials
EPD	An Environmental Product Declaration (EPD), certified by IGBC is available for this product. Please contact technical support for further details

Typical U-Values

Option 1

Build-up

Plaster
100mm inner leaf blockwork
ECO/CW
Unventilated cavity (low E)
100mm block outer leaf
Render

Thickness (mm)	1.13
100	0.16
110	0.15

Option 2

Build-up

Plaster skim coat
Plasterboard Dot and Dab
100mm inner leaf blockwork
ECO/CW
Unventilated cavity (low E)
102.5mm brick outer leaf

Thickness (mm)	1.13	0.51
100	0.17	0.17
110	0.15	0.15

Note: U-Values are indicative only. Please contact our technical department for a calculation suited to your specific project.

Key Points

Bio-enhanced PIR insulation

Enhanced performance as low as 0.020 W/mK

Halogen free

Bio-degradable packaging

Moisture directed to outer surface

Fully engineered jointing

Reduced packaging materials

Call the technical team today 046 906 6050
