SW/RS

Wall/Rainscreen

SW/RS

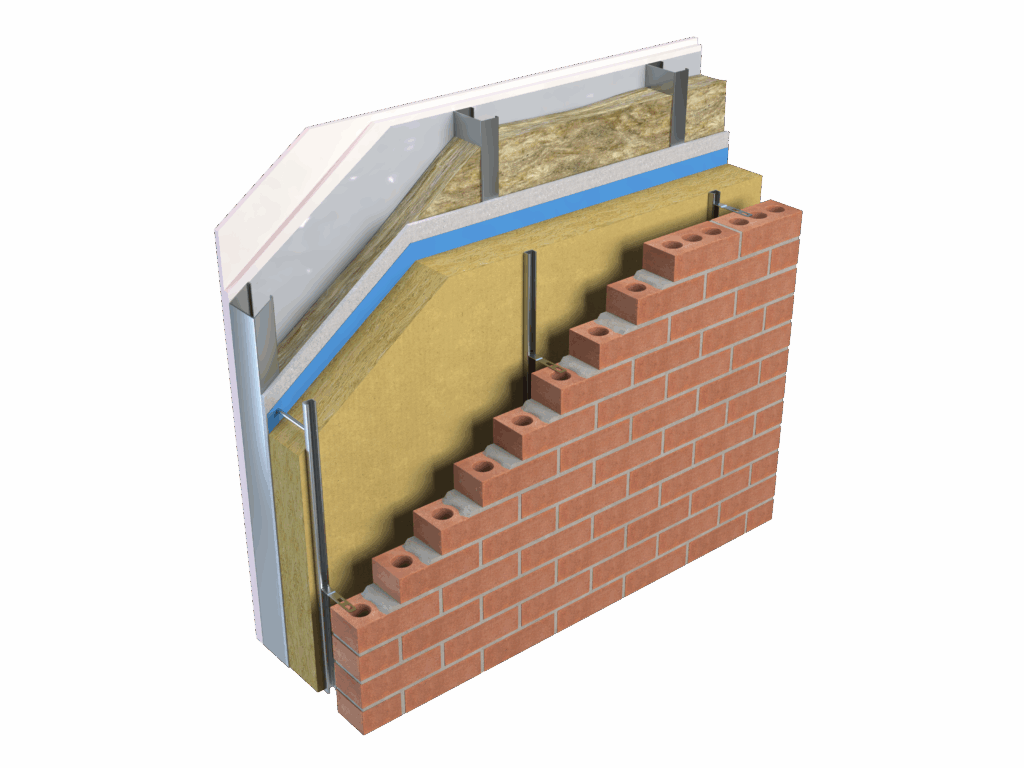

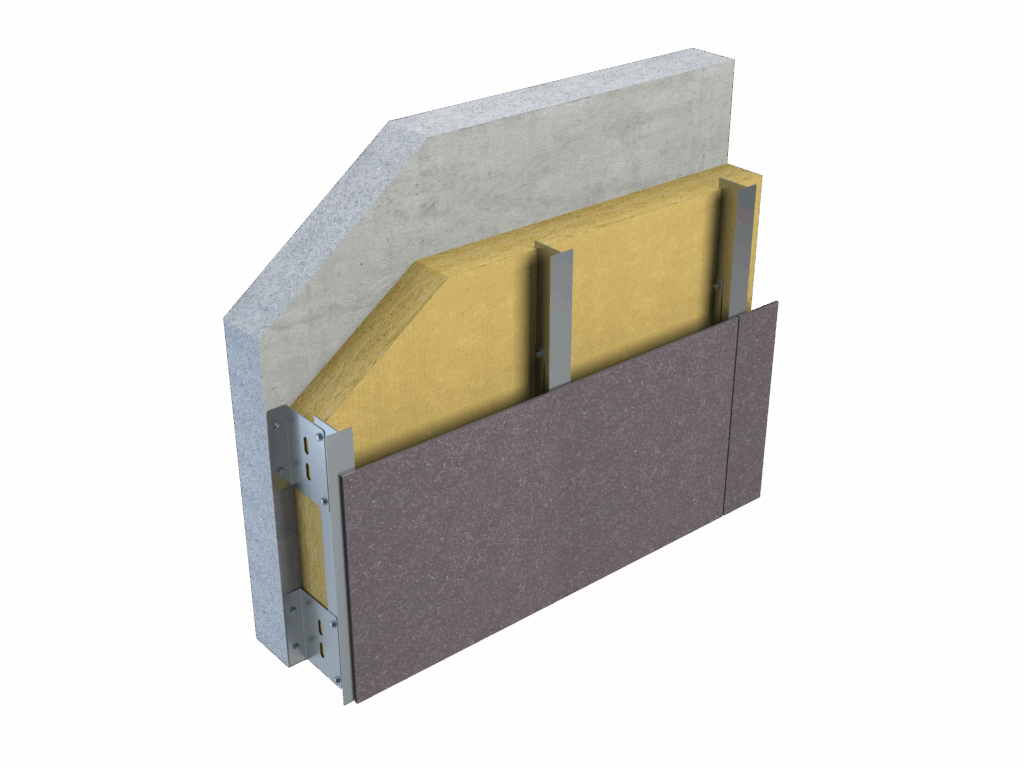

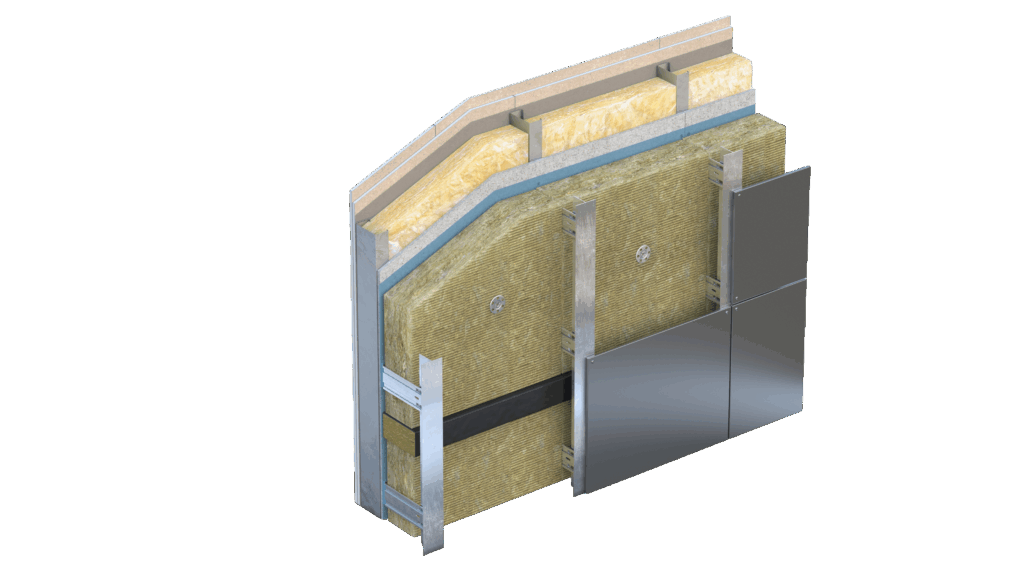

Ventilated Rainscreen Cladding

Unilin’s range of non-combustible, Euroclass ‘A1’ stonewool insulation provides surety when the highest fire performance is required. Stonewool Rainscreen insulation is suitable for use in ventilated facade, rainscreen and framing applications and closed systems such as curtain walling.

Unilin’s Stonewool insulation provides a robust, uniform, high density solution throughout the product providing resilience during the build process for the application of mechanically fixed substrates. Benefits

Enquire about this product

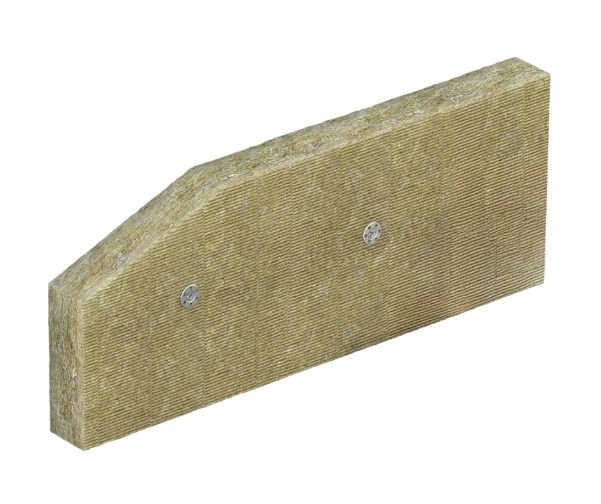

Image of Stone wool rainscreen insulation board

Attributes

Product Details
Product name	SW/RS
Material code	Please refer to packing list
Type	Non Combustible A1 Euroclass Stonewool Insulation
Application	Insulation for Ventilated Rainscreen Cladding
Thickness	50mm, 75mm, 100mm, 125mm, 150mm
Thermal Conductivity	0.036 (W/mK)
Unit of measurement	mm
Size/Dimensions	1200 x 600mm
Reaction to fire	Euroclass A1
Installation guide	See marketing materials

Thermal Resistances *

Thickness (mm)	R-Value (m2K/W)
50	1.35
75	2.05
100	2.75
120	3.45
150	4.15

Key Points

Euroclass A1 Fire classification

Robust High Density

Improved Acoustic Performance

Suitable for use in high rise buildings
