SW/ST

Non-Combustible Insulation

Product Details
Product name	SW/ST
Material code	Please refer to packing list
Type	Non Combustible A1 Euroclass Stonewool Insulation
Application	Insulation for Ventilated Soffit Applicatin
Thickness	100mm, 125mm, 150mm
Thermal Conductivity	0.035 (W/mK)
Unit of measurement	mm
Size/Dimensions	1200 x 600mm

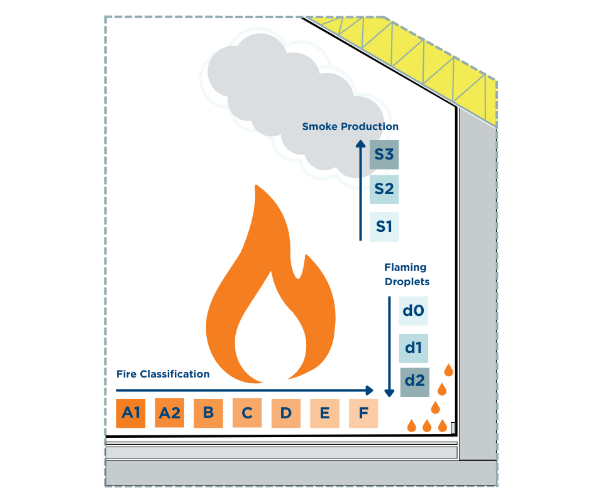

Reaction to fire	Euroclass A1
Installation guide	See marketing materials

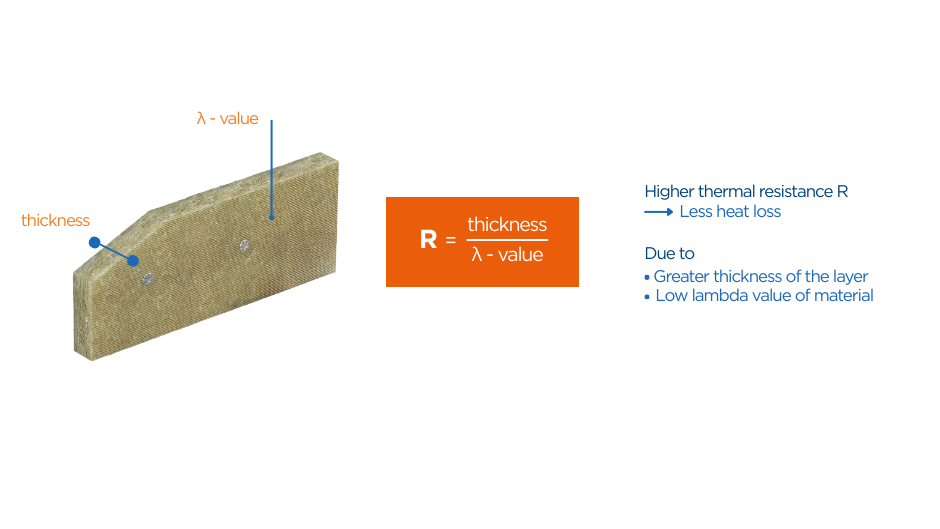

Thermal Resistances

Board sizes 1200 x 600mm (Edge Profile SE)

*Other sizes available dependent on quantity and lead time

Table 1

U-Value calculations to EN ISO:6946 SW/ST insulation for Soffit Application

				Thickness*
SW/ST		160	180	220
Solid Concrete 100mm		0.21	0.18	0.15

*May require two layers

Build up:

100mm concrete

SW/ST insulation for Soffit Apllication

Euroclass A1 Fire classification

Robust High Density

Improved Acoustic Performance
