XT/TL-MF

Insulation for Dry Lining walls (Mechanically Fixed)

Mechanically fixed thermal liner solution for new and existing builds

XT/TL-MF

Drylining Walls – Mechanically Fixed

Thin-R Thermal Liner (Mechanically Fixed) is a composite insulated panel of Unilin PIR insulation core with a composite foil facing bonded to 12.5mm tapered edge plasterboard for internal walls, sloped roofs, and ceilings.

It is only suitable for mechanically fixed applications.

The composite foil facing on both sides of this board incorporates an integral vapour control layer, which helps to reduce the risk of condensation.
This mechanically fixed Thermal Liner is designed to provide high levels of thermal insulation and drylining in one operation, providing the solution of choice in new build and renovation.

Enquire about this product

Alternative fixing for thermal liners or drylining

Attributes

Product Details
Product name	XT/TL-MF
Material code	Please refer to packing list
Type	PIR Insulation
Application	Wall, Roof – Mechanically Fixed Applications
Thickness	37.5mm, 52.5mm, 62.5mm, 72.5mm, 82.5mm, 92.5mm, 102.5mm, 112.5mm
Type of finishing board	12.5mm Plasterboard
Inner facing	Composite foil facings
Outer facing	Composite foil facings

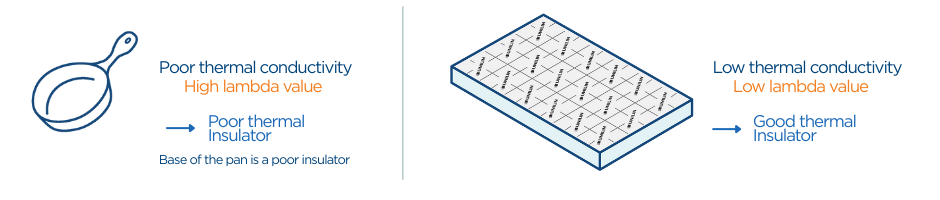

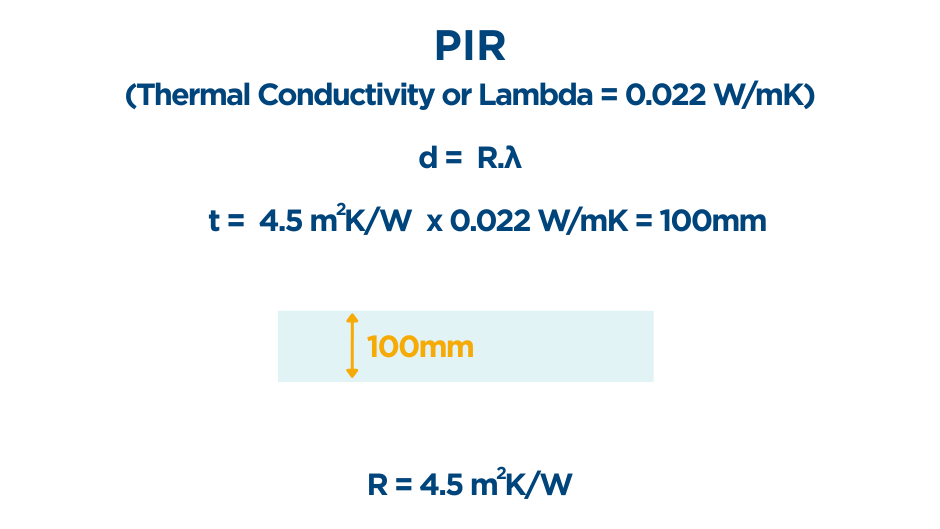

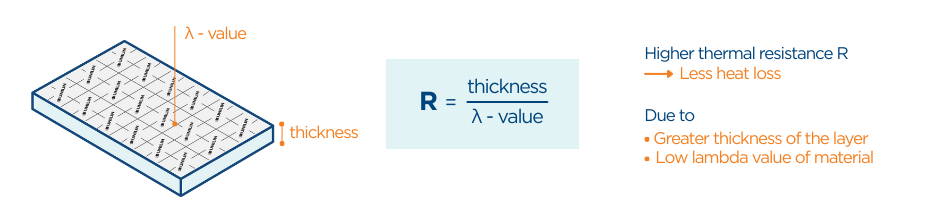

Thermal conductivity	0.022 (W/mK) (PIR only)
Unit of measurement	mm
Size/Dimensions	2400 x 1200mm (2438 ROI only)

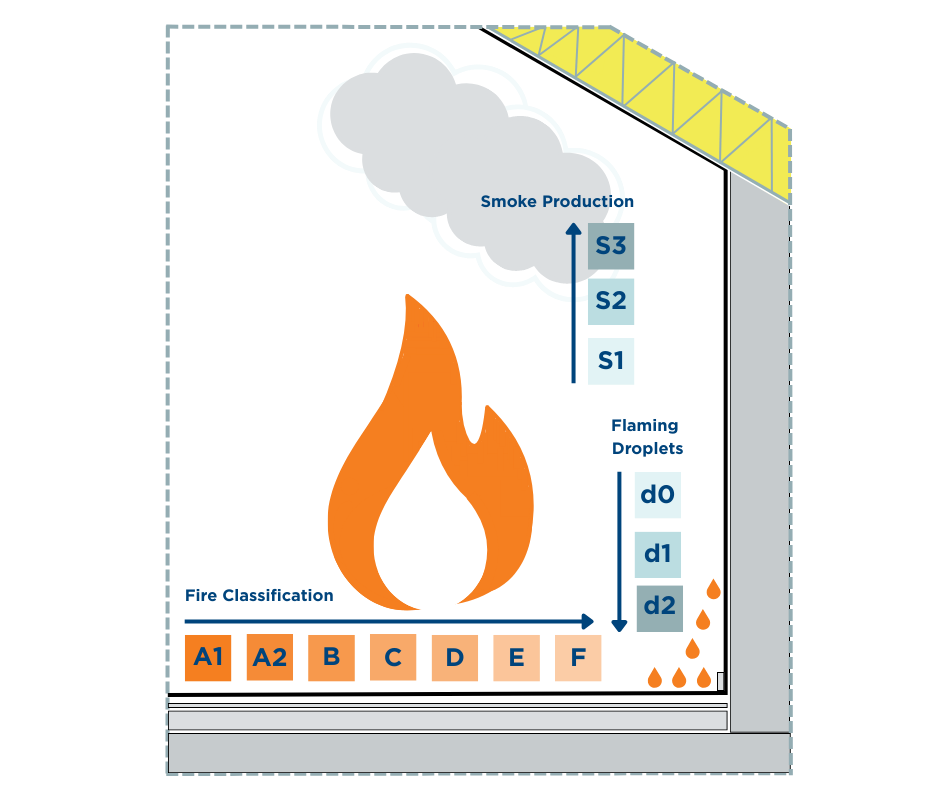

Reaction to fire	Euroclass B s1 d0
Installation guide	Please refer to our Marketing materials

Table 1

U-Value calculations to EN ISO:6946: 2017

XT/TL-MF Drylined

On battens

Thickness	37.5mm	42.5mm	52.5mm	62.5mm	72.5mm	82.5mm	92.5mm	102.5mm	112.5mm
Wall Type
215mm Hollow Block (External Render)	0.47	0.42	0.36	0.31	0.27	0.24	0.22	0.20	0.18
Solid Brick	0.46	0.42	0.35	0.30	0.26	0.24	0.21	0.19	0.18
Cavity Wall Pumped Block & Block*	0.20	0.19	0.18	0.17	0.15	0.14	0.14	0.13	0.12
100mm Pumped Bead @ 0.033 W/mK
